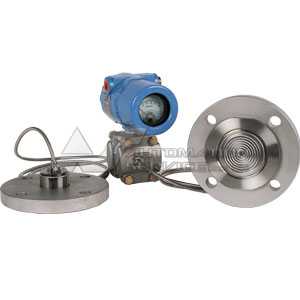

DIFFRENTIAL PRESSURE TRANSMITTER

output:

4-20 mA dc; 10-50 mA dc; Smart 4-20 mA dc, 4-20 mA dc square root of input with adjustable damping (Flow)

range:

0-5" H2O to 0-1000 psid

accuracy:

SMART: +/-0.1% of calibrated span Analog: +/-0.2 to +/-0.25% of calibrated span

materials:

Isolating Diaphragms: 316L SST, Hastelloy C, Monel, Tantalum Process Flanges and Adapters: Cadmium and Nickel plated CS, 316 SST, Hastelloy C, Tantalum

output:

4-20 mA dc, 10-50

range:

0-25 to 0-2770" H2O

accuracy:

SMART: +/-0.1% of calibrated span Analog: +/-0.2 to +/-0.25% of calibrated span

materials:

Isolating Diaphragms: 316L SST, Hastelloy C, Monel, Tantalum Process Flanges and Adapters: Cadmium and Nickel plated CS, 316 SST, Hastelloy C, Tantalum

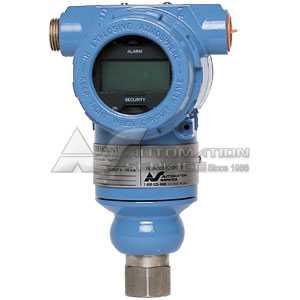

output:

4-20 mA with digital signal based on HART Protocol; Low Power, 1-5 V dc with digital signal based on HART Protocol; Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

range:

0-0.3 to 0-10,000 psig

accuracy:

1-5: +/-0.075% of span

power:

4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load

materials:

Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel

fluid:

Sensor fill fluid: Silicone, Inert (Halocarbon)

mounting:

Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST

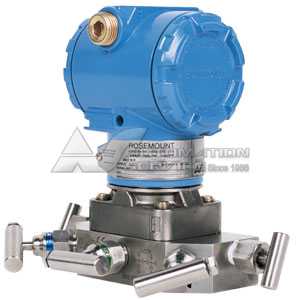

output:

4-20 mA with digital signal based on HART Protocol; Low Power, 1-5 V dc with digital signal based on HART Protocol; Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

range:

0-0.01 in H2O to 0-2000 psid

accuracy:

0-1: +/-0.1% of span

power:

4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load

materials:

Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum

fluid:

Sensor fill fluid: Silicone, Inert (Halocarbon)

mounting:

Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST
